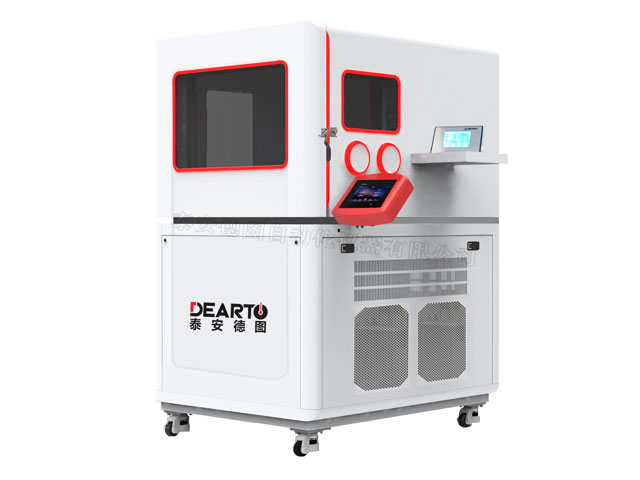

Temperature and humidity verification box, now the editor introduces the freezing and control system of temperature and humidity verification box.

Temperature and humidity verification box freezing system:

       1. Freezing system: air-cooled single (or multiple) section automatic load capacity adjustment technology.

        2. System and compressor: France original imported "Taikang" brand fully enclosed compressor unit refrigeration system.

        3. Cooling method: air-cooled fan condenser.

        4. Evaporator: Fin type automatic load capacity adjustment.

        5. Expansion system: automatic capacity controlled refrigeration system.

        6. Refrigerant: Adopt green environmental protection (HFC) with zero ozone coefficient. American Lianxin refrigerant R-404A, R23

        7. Freezing auxiliary parts: expansion valve (Denmark DANFOSS), solenoid valve (Japan); filter (Denmark DANFOSS); pressure controller (Denmark DANFOSS); stop valve (Denmark DANFOSS); oil separator (Denmark DANFOSS); refrigeration All parts are imported.

Temperature and humidity verification box control system:

       Temperature and humidity controller: South Korea's "TEMI" imported 880 color LCD display 5.7 'man-machine interface touch screen direct button type programmable controller, Chinese and English representation and wide viewing angle of 320 × 240 dot graphics LCD controller with adjustable backlight function.

        1. Accuracy: temperature ± 0.1 ℃ + 1 digit, humidity ± 1% R.H + 1digit.

        2. Resolution: temperature ± 0.01, humidity ± 0.01% R.H.

        3. Temperature slope: 0.1 ~ 9.9 can be set.
