Introduction

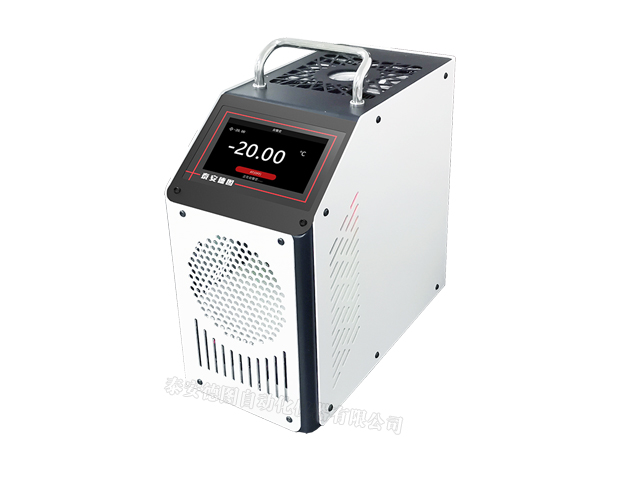

Refrigerated Temperature Portable Intelligent Dry Block Calibrator, simple operation, light and portable, accurate temperature control, suitable for laboratory and industrial site temperature calibration / measurement; DTG-Series portable dry block calibrator is calibration temperature range can be from -100 ℃ to 150 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. DTG-Series Dry well calibrator widely used in machinery, shipbuilding, chemical industry, food, electricity, medicine and other industries.
Function
1. Accurate temperature control and uniform temperature field.
2. Elegant, portable and lightweight, convenient for on-site verification.
3. Touch screen operation, one-key heating ,automatic temperature control is convenient to use.
4. Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable.
5. Multi-point calibration interpolation calibration technology, temperature control is more accurate.
6. With RS-232 interface, data can be exported.
7. The temperature curve, fluctuation and deviation are displayed simultaneously, and the reading is intuitive.
Technical Parameters
| Model | DTG-140G | DTG-150G | DT-ULT100G |
| Temperature range | -20℃~140℃ | -35℃~150℃ | -100℃~40℃ |
| Heat source | Semiconductor cooling and heating | ||
| Control method | Touch screen | ||
| Display resolution | 0.001℃ | ||
| Standard soaking block insertion aperture | Φ4.5、Φ6.5、Φ8、Φ10 When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support) | ||
| Horizontal temperature field | ≤±0.1℃ | ||
| Vertical temperature field | Within 30mm from the bottom of the well ≤1.0 ℃ | ||
| Well depth (mm) | 170mm | ||
| Dimensions (mm) | 280*165*280mm | ||
| Power | 400W | ||
| Power supply | 220V / 50Hz, 110V / 60Hz | ||
