Introduction

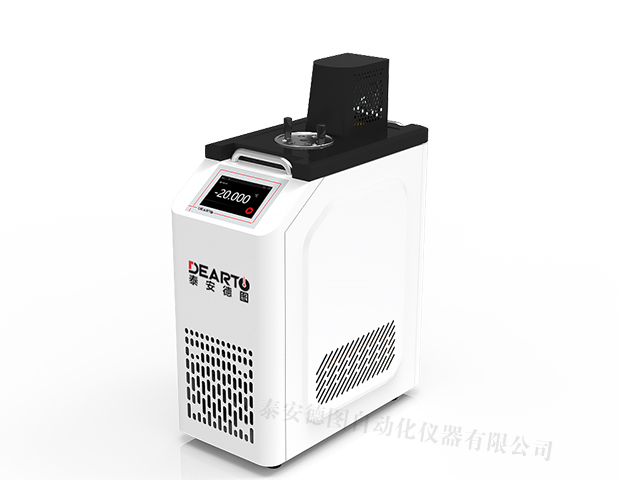

DTS-40BG Ultra-Low Temperature Liquid Portable Calibration Bath is a high-precision automatic control temperature calibration device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy.
DTS-40BG portable calibration bath Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable.
DTS-40BG portable calibration bath is suitable for the field temperature calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.（If the portable calibration bath has special requirements, it can be customized as required）
Technical index
| Product name | Ultra-Low Temperature Liquid Portable Calibration Bath | |
| Model | DTS-125BG | DTS-40BG |
| Temperature range | -40℃~125℃ | -40℃~150℃/-40℃~180℃ |
| Control method | Touch screen | |
| Temperature fluctuation | ≤±0.02℃/10min（0℃） | |
| Temperature uniformity | ≤0.02℃（0℃） | |
| Display resolution | 0.001℃ | |
| Work area size（mm） | Φ80×280 | |
| Dimensions（mm） | 430×225×500 | |
| Working medium | Special media | |
| Features | Say goodbye to environmental impact: at 20~30°C ambient temperature, -40°C checkpoint is not affected | |
| Intelligent high temperature quick drop: it only takes 30 minutes to drop from 150 ° C to 25 ° C, meeting multi-cycle check and test | ||
| Sealed construction:Push-type quick seal design, anti-leakage, convenient on-site transportation | ||
| Hidden handle:Hidden handle design, convenient and easy to carry | ||
| Intelligent touch screen:Smart touch screen, human-computer interaction interface, multi-function display window, support multi-touch | ||
| Real-time curve display:Real-time display of temperature curve and automatic calculation of fluctuation | ||
| Multi-point calibration and correction:Support multi-point temperature calibration and correction; automatic temperature control in sections, rapid heating | ||
| Safe and reliable:With overheating protection, heating limit function, safe and reliable | ||
| Communication function:With RS-232 communication interface, can be connected to the upper computer | ||
| Remarks | Flange size can be customized according to customer needs | |
