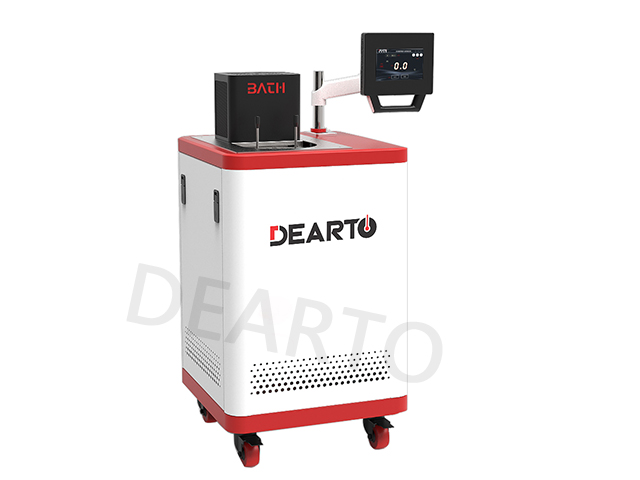

DTW Portable Calibration Bath/High Temperature Precision Sailt Bath is a new product developed according to the user's requirements for field temperature calibrator.DTW portable sailt bath has the same structure as the standard oil bath used in the laboratory. The Dtw portable calibration bath has an independent heating system, stirring system and up to 0.1 level The original Japanese imported temperature controller can provide users with accurate high-temperature heat source, which is very suitable for industrial field and laboratories.
DTW portable sailt bath Features：
● DTW portable calibration bath has independent heating system, stirring system and 0.1 level imported Japanese temperature control system;
● Wide temperature range, high temperature control accuracy in all temperature ranges;
● The liquid medium is pressure-free, non-toxic and non-corrosive;
● The aperture of the detection jack can be customized according to different sizes;
● DTW portable sailt bath is suitable for high-precision detection of temperature components such as thermocouples and thermal resistances.
DTW portable sailt bath indicators:
| Product Name | DTW Portable High Temperature Precision Sailt Bath |
| Model | DTW-560B |
| Temperature range | 180℃~560℃ |
| Temperature fluctuation | ±0.01℃/10min |
| Uniformity of horizontal temperature field | ≤0.01℃ |
| Vertical temperature field uniformity | ≤0.02℃ |
| Working area size | Φ80×200(mm） |
| Rated power | 1.0KW |
| Remarks | 500~850℃, 850~1100℃ liquid calibration bath for special medium can be customized |
