Introduction

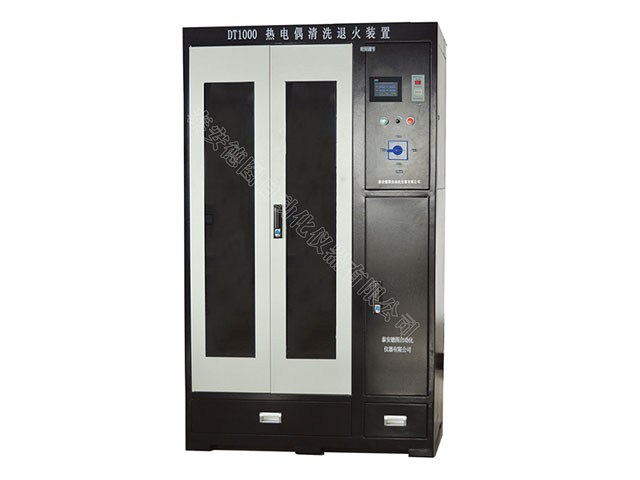

DT1000G Thermocouple Cleaning and Annealing Device is designed in accordance with the verification procedures of "JJG75-1995", "JJGl67-1995", "JJGl41-2013", "JJG668-1997", and the standard and working precious metal thermocouples are energized and cleaned before verification,annealing. Hang the thermocouple wire on the special platinum hook, adjust the working current after power-on, and perform thermocouple cleaning annealing according to the time specified in the verification regulations.
Technical Parameters
◇ Working voltage: AC 220V ± 10% 50Hz
◇ Control method: touch control screen
◇ Working current: 0-20A
◇ Current adjustment accuracy: 0.5 level
◇ Current display resolution: 0.1A
◇ Simultaneous cleaning count: 3
◇ Time adjustment accuracy: 1min
◇ Ambient temperature: 0 ～ 30 ℃
◇ Relative humidity: ≤85% RH
◇ Dimensions (mm): 1000mm (length) × 460mm (width) × 1770mm (height)
