Introduction:

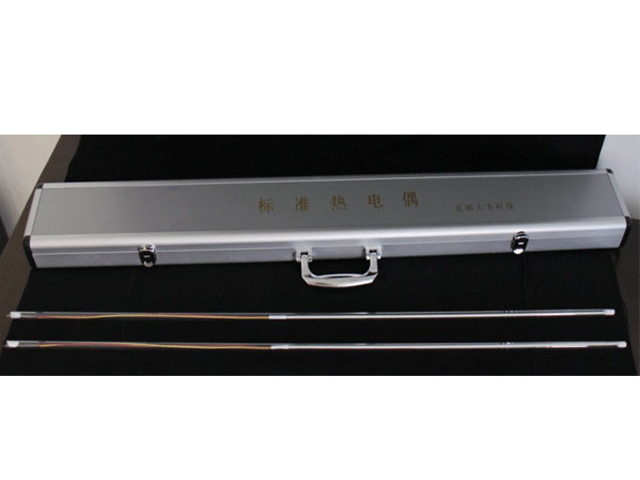

Class I Standard Platinum Rhodium 10-Platinum Thermocouple (S) is a temperature measurement standard,has standard platinum-rhodium 10-platinum thermocouple and standard platinum-rhodium 30-platinum-rhodium 6 thermocouple two categories. Standard platinum-rhodium 10-platinum thermocouple is used in the temperature range of 419.527~1084.62℃ to achieve the value of thermocouple temperature transfer and precision temperature, accuracy grade has first-class standard and second-class standard. Standard platinum-rhodium 30-platinum-rhodium 6 thermocouple used in 1100~1500℃ temperature area thermocouple temperature value transfer and precision temperature, precision grade has second standard.
Technical indicator:
Type | Standard platinum rhodium10－Platinum | Standard platinum rhodium30－platinum rhodium 6 | |
Temp.range | 300～1300℃ | 1100～1500℃ | |
Model | WRPB-1 | WRPB-2 | WRRB-2 |
Accuracy grade | Grade I | Grade II | Grade II |
Stability | Better than 3μV | Better than 5μV | Better than 8μV |
Thermoelectric range | E(tCu)=10.575±0.015mV E(tAl)=5.860+0.37〔E(tCu)－10.575〕±0.005mV E(tZn)= 3.447+0.18〔E(tCu)－10.575〕±0.005mV | E(1100℃)=5.780±0.025mV E(1500℃)=10.099±0.040mV
| |
Electrode Size
| DiameterΦ0.5 Length not less than1000mm | ||
