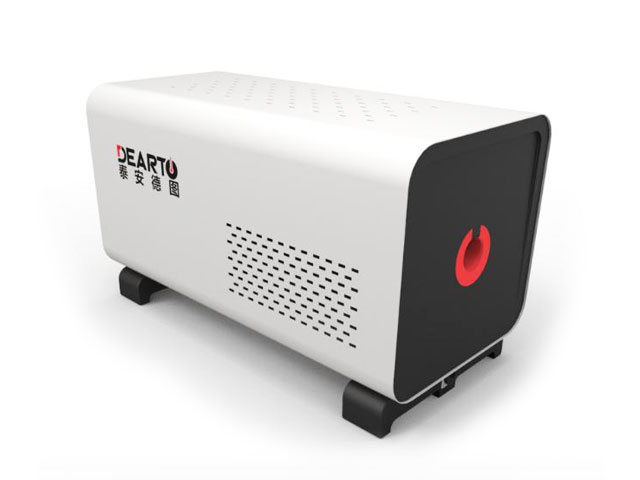

DTL-150G Ultra-Short Thermocouple Calibration furnace(Customizable 1300℃)

Thermocouple Calibration Furnace

◇ Introduction ◇ Function◇ Parameter◇ Product order◇ Download◇ Related products


Introduction

DTL-150G Ultra-Short Thermocouple Calibration furnace(Customizable 1300℃) is a customized temperature field constant temperature equipment, the temperature range is 300℃-1300℃, higher than the general thermocouple calibration furnace, mainly used in some industries that require special custom requirements, The temperature range and furnace size of the DTL-150G thermocouple calibration  furnace can be customized on demand. If your company has special requirements, it is recommended to choose this product.

This calibration furnace can be used to verify some unconventional standard thermocouples, working precious metal thermocouples, and base metal thermocouples. DTL-150G has the advantages of good heat preservation and leakage prevention. The technical indicators of its temperature field are in full compliance with the relevant national verification regulations and standard technical requirements.

Technical Parameters

◇ Furnace size: φ40mm×150mm(Customizable)

◇ Temperature range: 300℃~1300 ℃(Customizable)

◇ Temperature field index: The temperature field center deviates from the geometric center ≤10mm, within 40mm ≤1.0 ℃. The temperature gradient within ± 20mm in the center of the temperature field≤0.4 ℃ / 10mm.

◇ According to the regulations: "JJF1184-2007 Thermocouple Calibration Furnace Temperature Field Test Technical Specifications". "JJG668-1997 Working (Pt-Rh 10-Pt, Pt-Rh 13-Pt) short thermocouple calibration regulations".

◇ Scope of application: Base metal thermocouple, S, R type short thermocouple, short base metal thermocouple verification/calibration.


Note: furnace inner size, temperature range can be customized non-standard

Thermocouple calibration furnace patent certificate

DTL-150G Ultra-Short Thermocouple Calibration furnace(Customizable 1300℃)
