I. Overview

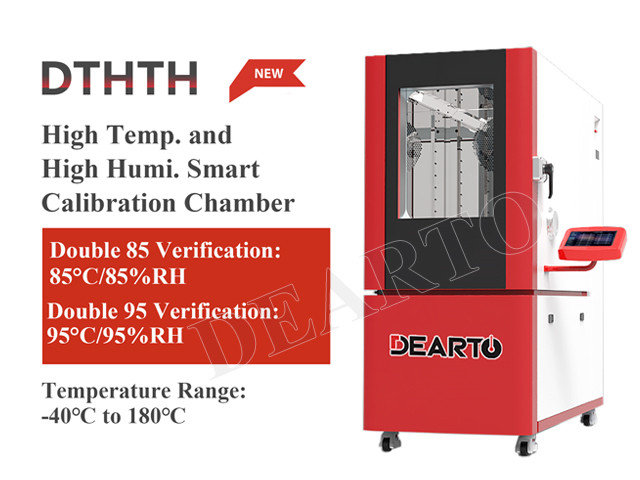

DTLH-85/95G High Temp. and High Humi. Smart Calibration Chamber combines the advantages of temperature and humidity calibration chamber and temperature and humidity test chamber, with ultra-wide temperature and humidity range and high temperature and humidity index. It can be used for the verification, calibration and testing of temperature and humidity instruments such as temperature and humidity sensors, digital temperature and humidity meters, mechanical temperature and humidity meters, and can also be used for high-precision temperature and humidity tests.
II. Technical Parameters
Model | DTHTH-85G | DTHTH-95G |
Temp.range | -40 ℃ to 180 ℃ | -40 ℃ to 180 ℃ |
Temp.Resolution | 0.01℃ | |
Humi.range | 10 %RH to 95 %RH （20 ℃ to 95 ℃）； | |
Humi.Resolution | 0.01%RH | |
Temp.Stability | ≤±0.05 ℃ /30min @(temp.only)，≤±0.1 ℃/30min@(Humidification on) | |
Temp.Uniformity | ≤0.2 ℃ @（5 ℃ to 50 ℃） ； 0.6 ℃ @（50 ℃ to 80 ℃） | |
Humi.Stability | ≤±0.5 %RH/30min | |
Humi.Uniformity | ≤0.8 %RH（20℃） | |
Temp.change rate | ≤0.2 ℃/min | |
Humi.change rate | ≤0.8 %RH/min | |
Weight | 460kg | |
Working space | 570×750×760mm/ (W×H×D in mm) | |
Dimensions | 830×1800×1600mm/(W×H×D in mm) | |
Screen | 7-inch HD touch screen | |
Power supply & input | AC380V±5% 50Hz,Max Power 7kW , Rated Power 5kW | |
Temperature principle | Direct heat exchange | |
Humidity generation principle | Humidification: Shallow water pan humidification; Dehumidification: Refrigeration dehumidification. | |
